Diamond Wheels for Glass Edgers

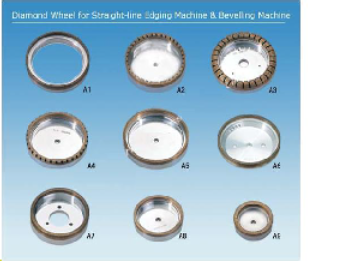

| Diamond Cup Wheels for Straight-line Edging Machines & Bevelling Machines | |||||||
| Name | Code | Outer Diameter D(mm) | Hole H(mm) | Actual Work Rim Size (mm) | Function | Shape of Work Rim | Application |
| Diamond Wheel (ring shape) | A1 | 150 | 120 | 5*10 | Rough Grinding | Continuous | Used on shape machine for grinding light glass, decoration glass and art glass. |
| Cup Diamond Wheel | A2 | 150 | 12, 50 | 10*8 | Rough Grinding | Inside-segmented | Used for edging machine and double edging machine. |
| 175 | 50, 70 | 15*10 | Rough Grinding | Inside-segmented | Used for double edging machine. | ||
| A3 | 150 | 12, 50 | 15*10 | Rough Grinding | Segmented | Used for edging machine and double edging machine. | |
| 175 | 50, 70 | 15*10 | Rough Grinding | Segmented | Used for double edging machine. | ||
| A7 | 150 | 12, 50 | 8*8 | Rough Grinding | Continuous | Used for edging machine and double edging machine. | |
| 175 | 50, 70 | 8*8 | Rough Grinding | Continuous | Used for double edging machine. | ||
| A8 | 130 | 12, 50 | 8*8 | Rough Grinding | Continuous | Used for edging machine. | |
| A9 | 100 | 12, 22 | 8*8 | Chamfering | Continuous | ||
| Cup Diamond Wheel | A4 | 150 | 12, 22 | 6*10 | Rough Grinding | Outside-segmented | Used for bevelling machine. |
| A5 | 150 | 12, 22 | 6*8 | Rough Grinding | Continuous | ||
| Diamond Wheel (bowl shape) | A6 | 150 | 12, 22 | 6*8 | Rough Grinding | Continuous | |
| Remarks: Different specifications are available if request. | |||||||
High Performance and Affordable New and Used Glass Machines
Diamond Wheels for Glass Edging Machines
