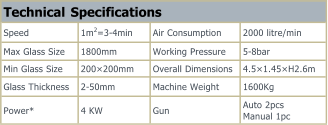

Technical Specifications Speed 1m 2 =3 - 4min Air Consumption 2000 litre/min Max Glass Size 1800mm Working Pressure 5 - 8bar Min Glass Size 200×200mm Overall Dimensions 4.5×1.45×H2.6m Glass Thickness 2 - 50mm Machine Weight 1600Kg Power* 4 KW Gun Auto 2pcs Manual 1pc
Note: These machines require a compressed air supply.  A 20Hp compressor is recommended.

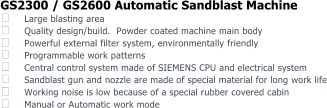

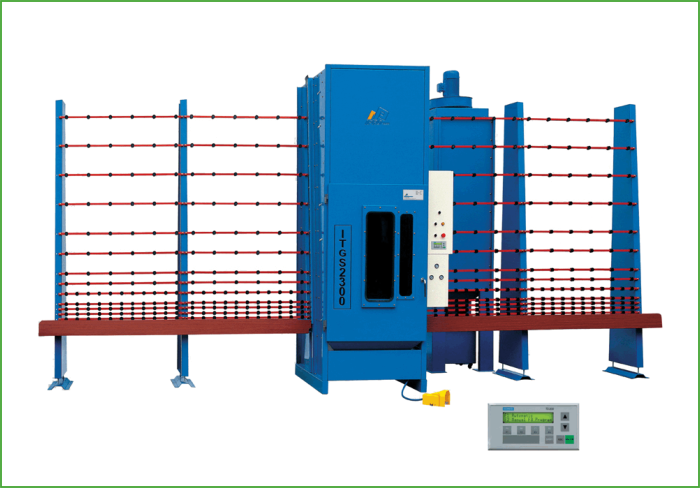

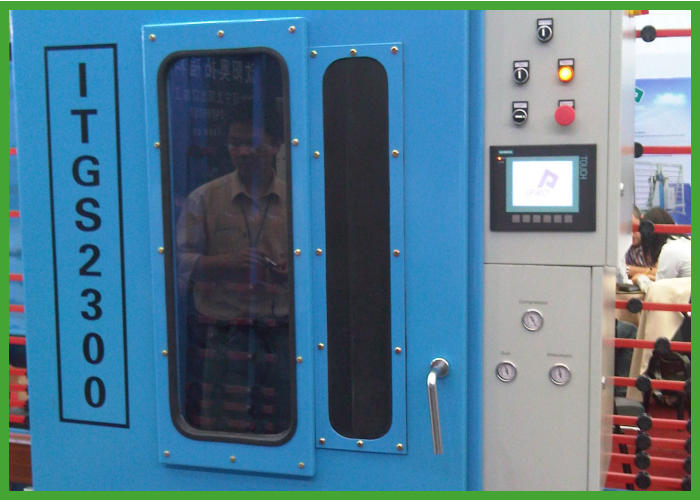

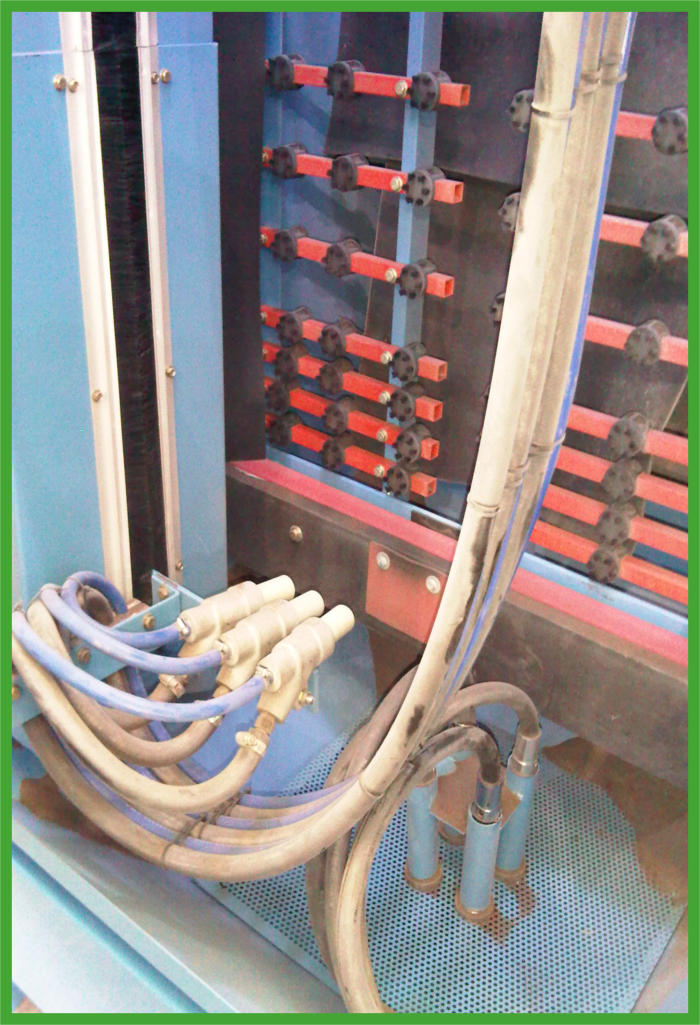

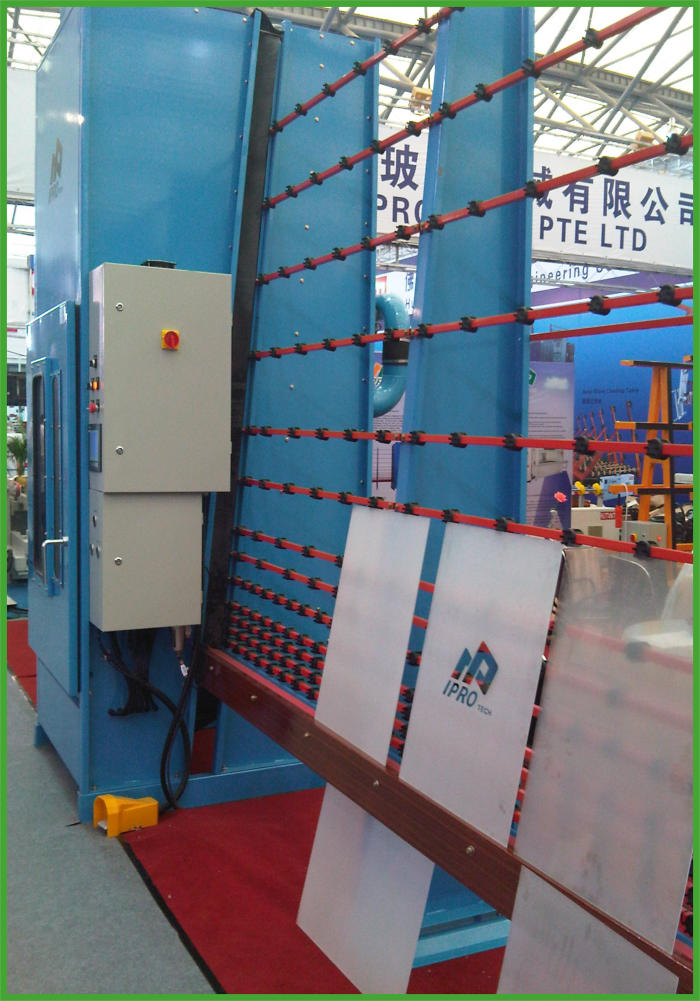

GS 1800 Automatic Sandblast Machine  Quality design/build. Powder coated machine main body  Built - in filter system, environmentally friendly  Programmable work patterns  Central control system made of SIEMENS CPU and electrical system  Sandblast gun and nozzle are made of special material for long work life  Working noise is low because of a special rubber covered cabin  Manual or Automatic work mode GS2300 / GS2600 Automatic Sandblast Machine  Large blasting area  Quality design/build. Powder coated machine main body  Powerful external filter system, environmentally friendly  Programmable work patterns  Central control system made of SIEMENS CPU and electrical system  Sandblast gun and nozzle are made of special material for long work life  Working noise is low because of a special rubber covered cabin  Manual or Automatic work mode Technical Specifications Speed 1m 2 =3 - 4min Number of hoses 9 Maximum Glass Size 2300mm / 2600mm Aspirator delivery 700m3/h Minimum Glass Size 200×200mm Abrasive material Aluminium oxide Glass Thickness 3 - 50mm Overall dimensions 7160×1350×H3100mm 7160×1350×H3300mm Power 4kw Dust collector 760×760×H3240mm Power supply* 415V 50Hz +/ - 5% Total machine weight 1500kg /1700kg Working pressure 5 - 8bar Dust collector weight 350kg Compressed air consumption 2400lite/min (requires 20 horsepower) Gun Auto 2pcs Manual 1pc
* Special Voltage requirements to be specified by Customer.  Machines are sold as CE rated.
Automatic Glass Sandblasting Machines
