Peripheral or Shape Wheels for Glass Edgers

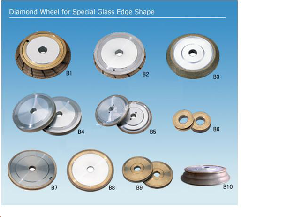

| Diamond Wheel for Special Shape Glass Edge. | ||||||
| Diamond wheel for pencil, flat with arris, OG, 2-OG & 3-OG etc... | ||||||
| Code & Name | Outer Diameter D (mm) | Hole H(mm) | Glass Thinckness T(mm) | Position No. | Shape of Work Rim | Application |
| B1 3-OG Diamond Wheel | 100, 150 | 22 | 10, 12, 15, 19 | Rough Grinding | Segmented | It is used for rough grinding of 3-OG shape. |
| B2 OG Diamond Wheel | 100, 150 | 22 | 8, 10, 12, 15, 19 | Rough Grinding | Segmented | It is used for rough grinding of OG shape. |
| B3 45°Miter Diamond Wheel | 100, 150 | 22 | 8, 10, 12, 15, 19 | Rough Grinding | Continuous | It is used for shape edge before OG wheel and can reduce the waste of OG wheel. |
| B5 Diamond Engraving Wheel ('U'& 'V' shape) | 200 | 50 | 3, 5, 6, 8, 10, 12, 15, 20, 25 | Engraving | Segmented | It is used for CNC engraving machine. |
| 150 | 22 | |||||
| B4/B6/B7/B9 Diamond Wheel (pencil /flat with arris) | 50, 100, 150, 175 | 22 | 3, 5, 6, 8, 10, 12, 15, 19 | Rough Grinding | Continuous | It is used for straight-line pencil edge / flat edge with arris. |
| B8 Flat Edging Wheel | 150 | 22 | On Request | Rough Grinding | Continuous | It is used for shape grinding machine. |
| B10 2-OG Diamond wheel | 100, 150 | 22 | 8, 10, 12, 15, 19 | Rough Grinding | Continuous | It is used for rough grinding of 2-OG shape. |
| Remarks: Different specification | ||||||
