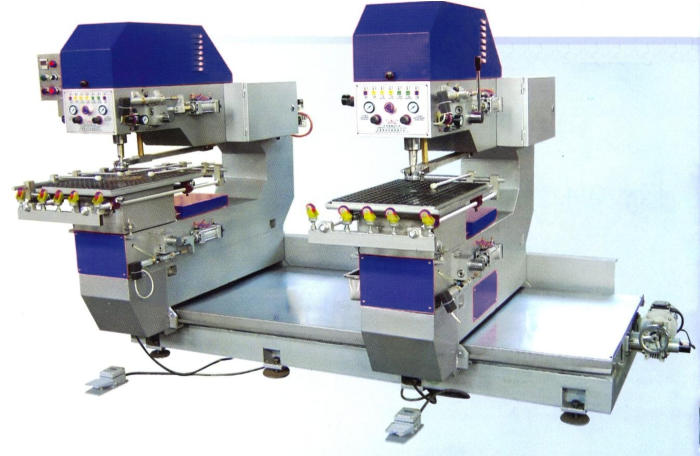

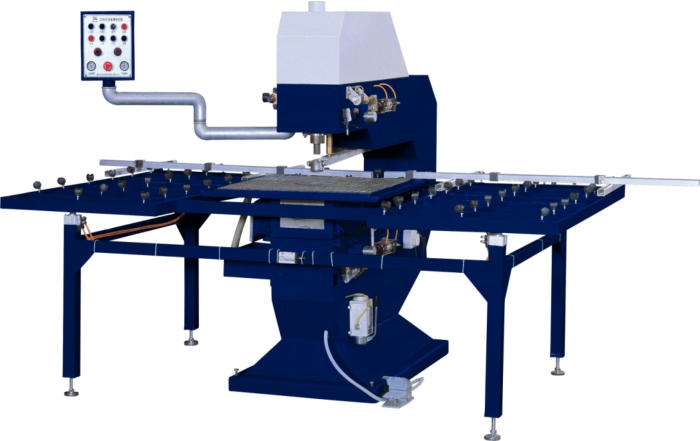

Technical Specifications Maximum hole center 1000mm  ( 39 - 1/4”) Glass thickness 3mm - 40mm  (1/8  – 1 - 5/8”) Glass Hole Size 4 - 100mm   (5/32  – 4”) Power* 2.2KW (220V, 3phase, 60Hz) Weight 800Kg  (1770lb) Base Dimension 1.66m*0.82m*1.6m   (66 x 32 x 63”) GEM  - GDM80 Glass Drill Machine    - Opposing drill heads produce nice clean hole. - Hole centering is by means of mechanical or laser light method.   - A Pneumatic clamp holds the glass with adjustable pressure.   - The machine has two working modes: semiautomatic & automatic.   - This machine uses oil damping technology for controlling the movement of the  drill spindles. GEM  - GDM2X1000  Double Hole Glass Drill Machine    - 2 pair of Opposing drill heads produce clean holes fast. - Excellent for multi - hole drilling.  Maintains accurate centers.   - A Pneumatic clamp holds the glass with adjustable pressure.   - Easy to use foot petal automates drill sequence for one or both drills at the  same time - Jig setup allows for fast and accurate repetitive drilling. - Left drill is fixed.  Right drill moves electrically with a switch to digital position- ing for high accuracy. Technical Specifications Maximum hole center 1000mm  ( 39 - 1/4”) Distance between centers 480 - 2000mm (18.9 — 78.75”) Glass thickness 3mm - 40mm  (1/8  – 1 - 5/8”) Glass Hole Size 4 - 80mm   (5/32  – 3”) Power* 5KW (220V, 3phase, 60Hz) Weight 1800Kg  (3970lb) Base Dimension 2.6 x 1.6m (8.5 x  5.25 ft) * Special Voltage requirements to be specified by Customer.  Machines are sold as CE rated.
GEM Horizontal Glass Drilling Machines
Phone:+1
-
416
-
342
-
7547
Fax: +1
-
866
-
222
-
6339 (toll free US or Canada)   +1
-
905
-
492
-
2230 (International)
  E mail:
             atwoodsales@gmail.com

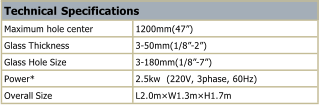

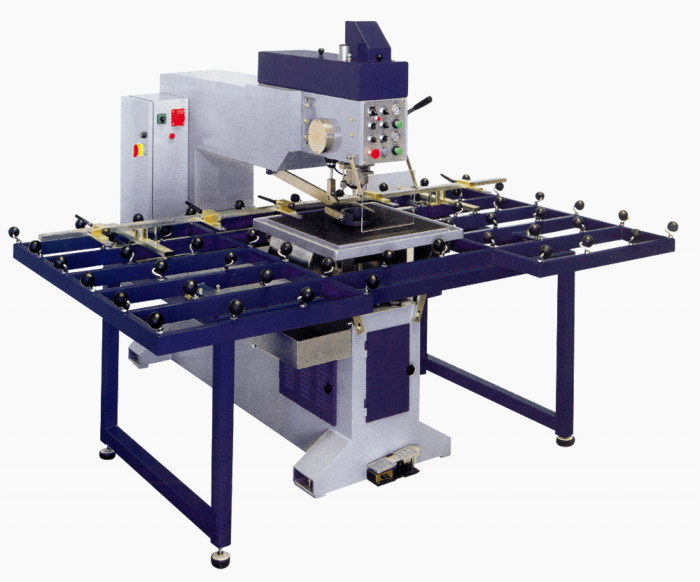

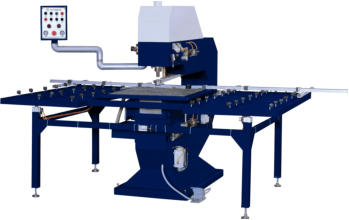

GEM Glass Drilling Machines GEM Glass Drilling Machines Technical Specifications Maximum hole center 1200mm(47”) Glass Thickness 3 - 50mm(1/8” - 2”) Glass Hole Size 3 - 180mm(1/8” - 7”) Power* 2.5kw  (220V, 3phase, 60Hz) Overall Size L2.0mŚW1.3mŚH1.7m Stainless steel chucks and spindle cooling by means of                                                                GD 1200 Horizontal Glass Drill Machine    - Rotation speed of the drills can be adjusted electronically - rotating union with special seals in the chuck area.  - Support table with adjustable extension guides. - Laser centering: a diode laser emits a beam which passes through the drill  bit for exact hole centering,  - Tank with water pump for closed circuit cooling. - Quality design, build and finish.  Excellent drill for the price.
With 47” Max. Hole Center!
